DS TIP
DS TIP is a diamond coated ultrasonic tip and designed for endodontic microsurgery.
The diamond coating improves cutting efficiency. A thin tip diameter allows for more precise and controlled retrograde preparation, which allows for more preservation of tooth structure (especially isthmus areas).
MODEL: DS-SA, DS-LA, DS-RA,
GENERAL DESCRIPTION
① Tip length: 3mm
② Tip diameter: 0.4mm(DS-S, DS-L, DS-R), 0.6mm(DS-X)
③ Tip taper: 07
④ Angle: 90 degree tip angle, 120 degree shank angle
⑤ Diamond coating: with diamond particle size 28~40 μm (#320 Grit)
AVAILABLE TYPES AND APPLICATIONS

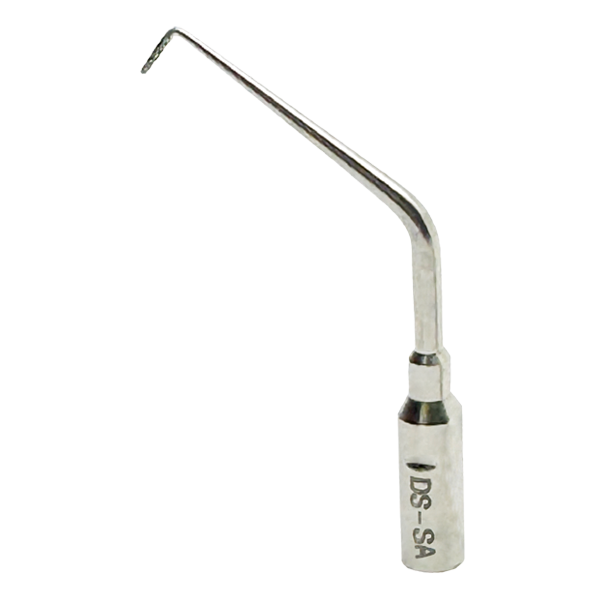

① DS-S
- length 3mm x diameter 0.6mm
- designed for anterior and posterior teeth (general use)

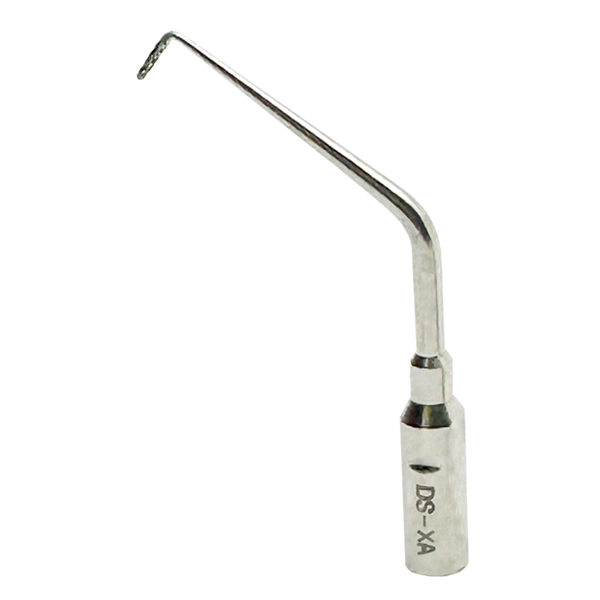

② DS-X(will be rolled out soon)
- length 3mm x diameter 0.6mm
- designed for anterior and posterior teeth (general use)
③ DS-L
- length 3mm x diameter 0.4mm
- designed for buccal area of UPPER RIGHT/LOWER LEFT posterior teeth
④ DS-R
- length 3mm x diameter 0.4mm
- designed for buccal area of UPPER LEFT/LOWER RIGHT posterior teeth
RECOMMENDED INTENSITY
SHOULD BE at a LOW power level.
It is recommended for 10~20% of the maximum power.
Note: Ultrasonic tip wrench is not included. The wrench can be purchased separately.
